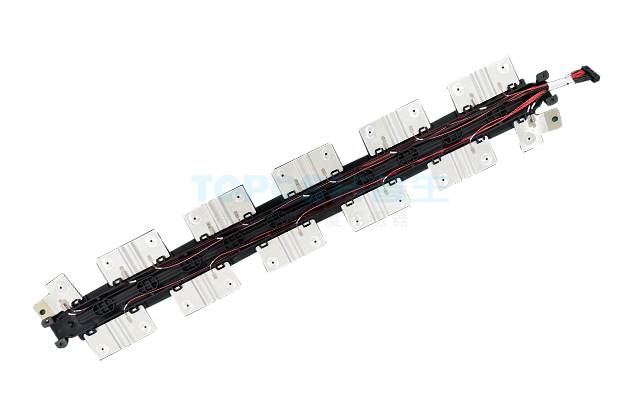

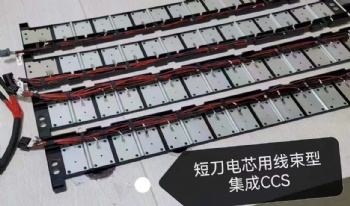

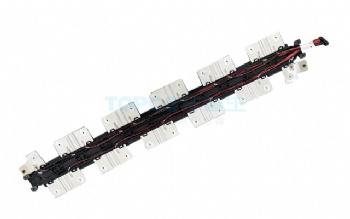

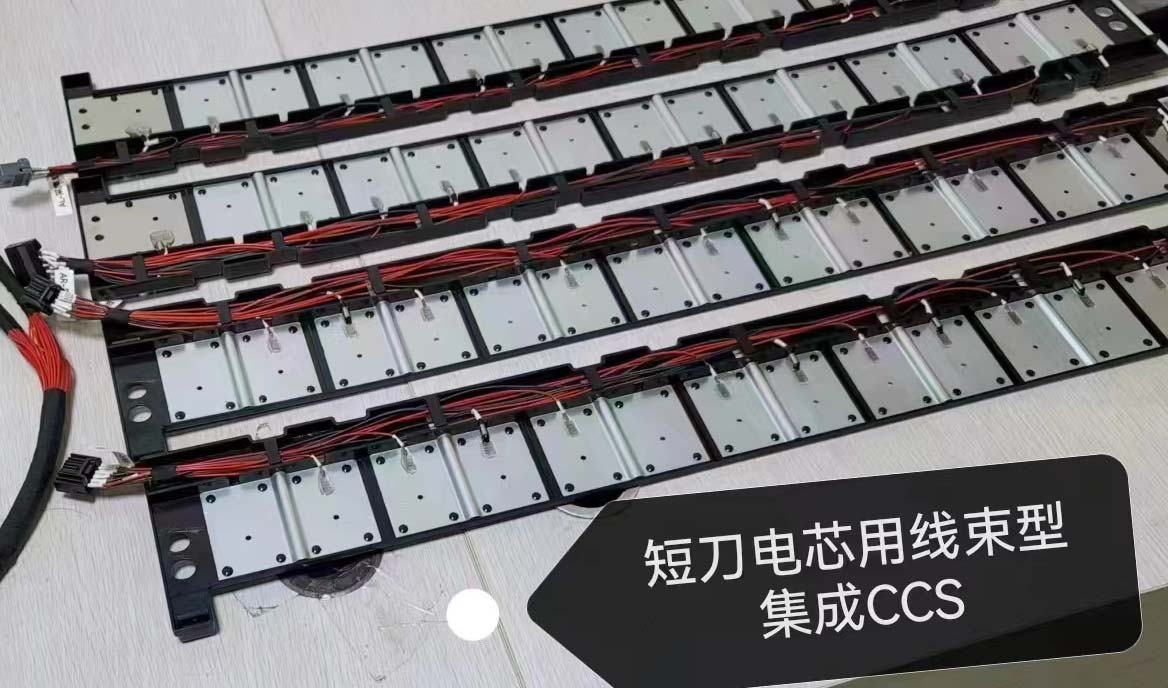

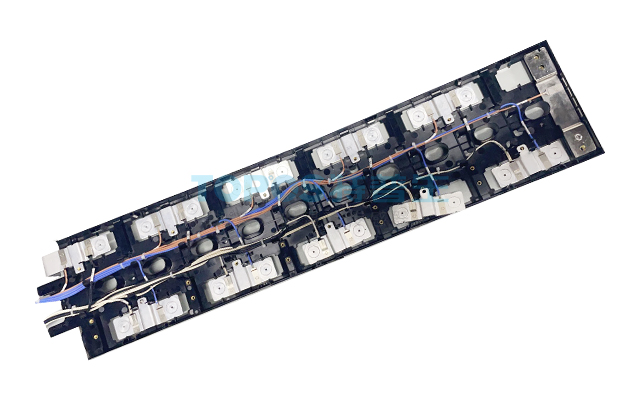

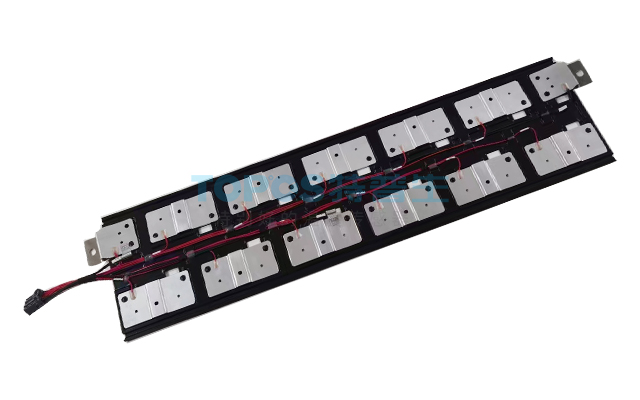

Harness solution

Solution advantages:
Wiring harness: stable signal transmission, can load overcurrent
Structure: flexible structure, support design changes
Temperature acquisition: NTC chip acquisition is stable, safe and reliable
Voltage acquisition: pure nickel is welded firmly, and the collected data is stable
Material: injection molding or plastic isolation board/aluminum bar, etc.
Operating temperature range: -50~150℃
Output signal: analog signal output


Inquiry Now

Categories

Product parameters:
1. Isolation board: fire retardant. The material is PC+ABS or PA66, etc.
2. Shell of collection end: pure nickel shell, thin shell wall, fast heat conduction, and good welding penetration effect.
3. 1060 aluminum bar: light structure, small impedance, fast heat dissipation.
4. Connection and fixation: laser welding, firm and beautiful, with high degree of automation.
5. High sensitivity and rapid response (resistance value and B value accuracy can reach ±1% respectively).
6. The withstand voltage of the finished product is as high as 4200VDC.
7. Built-in high-reliability performance single-ended resistors, equipped with patented internal structure technology, with a life span of up to 20 years.
Bracket, you can choose injection molding or blister isolation plate + wire slot;
Collection components, you can choose wire harness, FPC, PCB, FFC;
Temperature sensing acquisition line, you can choose epoxy head, OT terminal, nickel terminal (both contain NTC);
The connection method can be glued, screwed, ultrasonic welding or laser welding.

Applications:
Industrial and commercial energy storage, communication energy storage, household energy storage, portable energy storage
